Home > High Lumen LED Street Light >

LUMILED Chip Led Street Light Fittings 100W 200W Photocell Optional 150lm/w 5 Years Warranty

Product Categories
Shenzhen Lepower Optoelectronic Co., Ltd
Contact Now

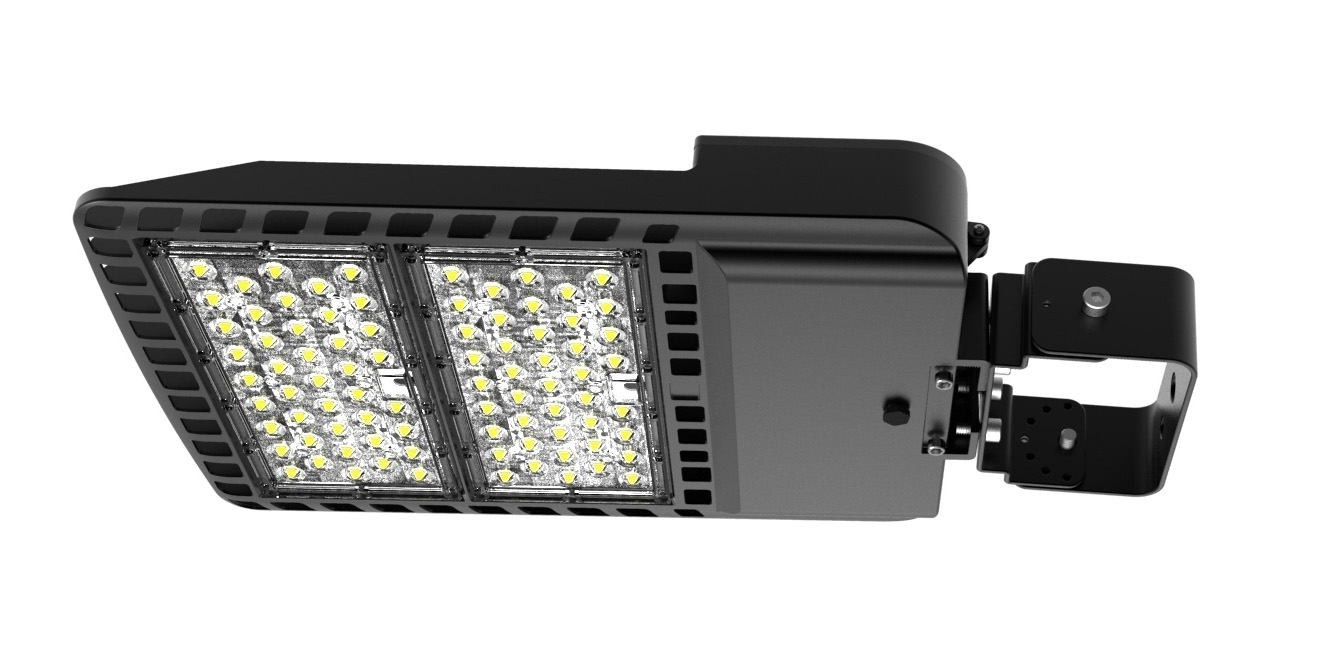

LUMILED Chip Led Street Light Fittings 100W 200W Photocell Optional 150lm/w 5 Years Warranty

  • 1
  • 2

Brand Name : LEPOWER

Model Number : XH0102

Certification : CE,Rohs,UL,,ETL

Place of Origin : China

MOQ : 10

Payment Terms : L/C, T/T

Delivery Time : 7-12 days

Packaging Details : 1pc/carton,

Material : Aluminium Alloy

LED Chip : Bridgelux SMD 5050

CCT : 2500-6500K

CRI : 70/80/90 optional

Watt : 100W

Luminous efficiency : 155lm/w

IP/IK : IP66/IK10

Lens : Type I/II/III/IV/V

Driver : MOSO brand

Wire cable : 3*1.0mm, 3 pin cable

Lens material : PC

Warranty : 5 years

LED chip : Bridgelux

Dimmable : LORA/0-10V/DALI

Contact Now

Customized LED Car Parking Lot 100W 200W Photocell Optional

150lm/w LUMILED Chip 5 years warranty &Best Factory Price

No. Name Features
1 Type LY-XH0101 LY-XH0102 LY-XH0103
2 Power 40W-80W 100-150W 180W-240W
3 LED Qty. 3000K / 4000K / 5000K / 6500K
4 Beam Angle 150*70° 145*100° TypeIII TypeIV TypeV
5 Brand of Chips 5050 LED
6 CCT 42pcs 84pcs 126pcs
7 CRI >70 / >80
8 System Efficiency 145-150Lm/W 150-160Lm/W 150-160Lm/W
10 IP Rate IP66
11 Voltage AC 90-305V
12 Working Environment -20℃~50℃,20%~90% H.R
13 Storage Temperature -20℃~85℃,10%~90% H.R
14 Driver Efficacy 90%
15 PF >0.95
16 Lifetime 50000H
17 Size of Lamp 494*310*84mm 621*310*84mm 769*320*93mm
18 Carton 360*360*130mm 475*360*130mm 632*376*138mm
19 N.W. 4.5KG 5.5KG 6.5KG

LUMILED Chip Led Street Light Fittings 100W 200W Photocell Optional 150lm/w 5 Years Warranty

LED Shoebox light application

1. Outdoor basketball court;tennis court
2. Badminton court ;the football field
3. The school playground ;stadium
4. Community leisure entertainment plaza;road lamp etc.

5. Exterior or interior LED lighting for shoebox lighting, LED shoe box light, shoebox light fixtures,

parking lot shoebox fixture, parking lot flood lighting.

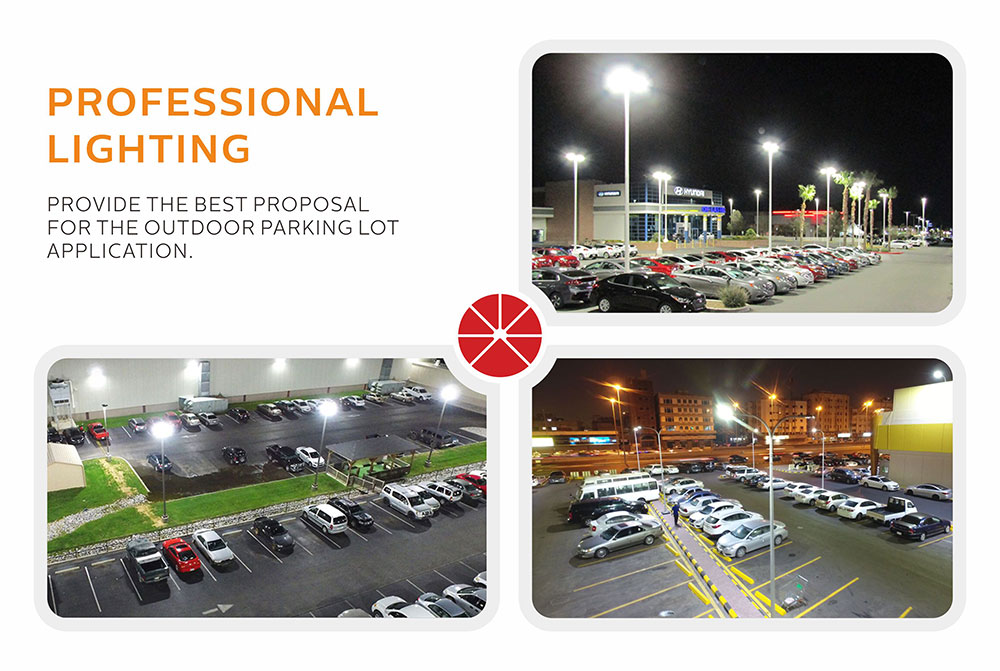

Application:

LUMILED Chip Led Street Light Fittings 100W 200W Photocell Optional 150lm/w 5 Years Warranty

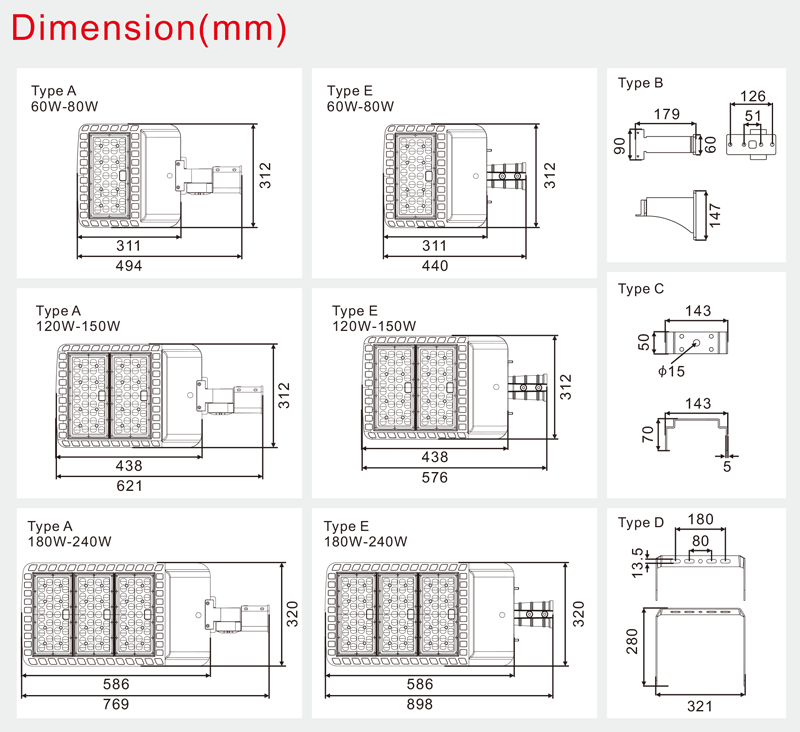

Dimension:

LUMILED Chip Led Street Light Fittings 100W 200W Photocell Optional 150lm/w 5 Years Warranty
